LED DISPLAYS

Message sign

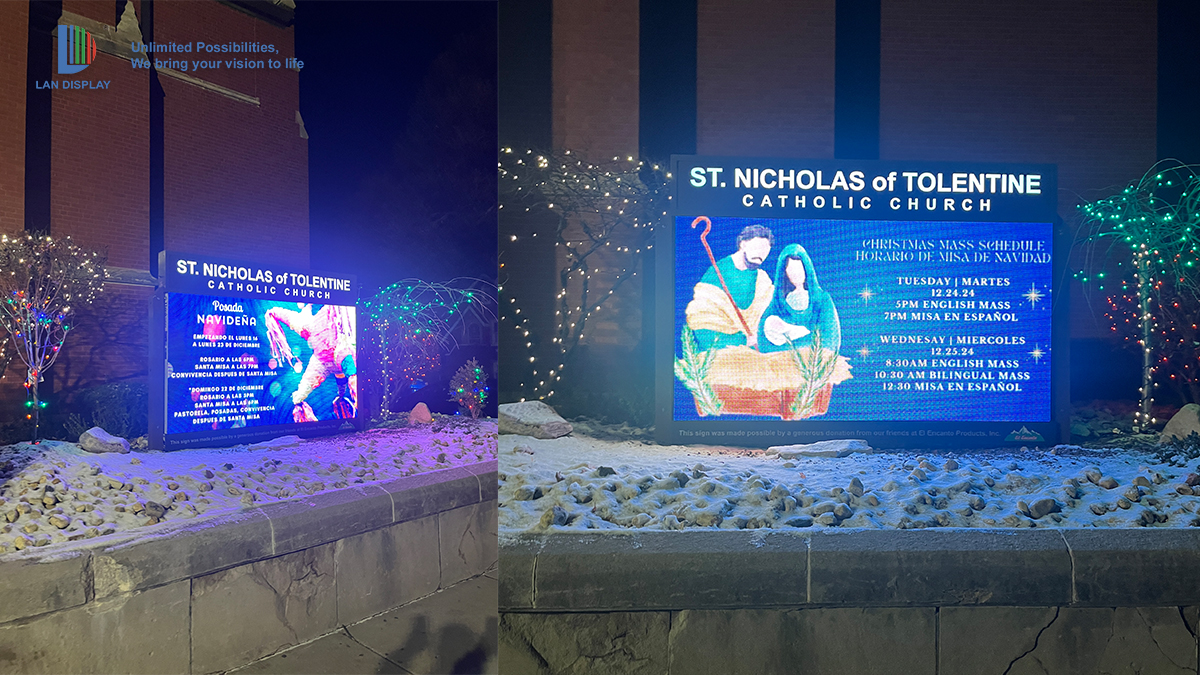

Message sign for churches,schools and public institutions

Outdoor message sign		Value	Value	Value	Value
Physical parameter	LED Type	smd 3in1 2727	smd 3in1 3535	smd 3in1 3535	smd 3in1 3535
	Pixel Pitch(mm)	6.35	9.525	10.16	15.24
	Panel dimensions(ft)	2x2/2x4	2x2/2x4	2x2/2x4	2x2/2x4
	Pixel per panel	96x96/96x192	64x64/64x128	60x60/60x120	40x40/40x80
	Cabinet weight(kg)	5/8	5/8	5/8	5/8
	Module housing material	plastic	plastic	plastic	plastic
	Cabinet dimensions(ft)	2x2/2x4	2x2/2x4	2x2/2x4	2x2/2x4
Optoelectrical Parameter	Brigtness(nits)	10000	10000	10000	10000
	Refresh rate(Hz)	≥3840	≥3840	≥3840	≥3840
	Gray scale(Bit)	16	16	16	16
	Contrast ratio	7500:1	7500:1	7500:1	7500:1
	Color temperature(K)	8000	8000	8000	8000
	Viewing Angle (H/V) (°)	140/140	140/140	140/140	140/140
	Driving Type	1/4	1/4	1/5	static
	AC Operating Voltage (V)	100-240	100-240	100-240	100-240
	Power Consumption (Max./Avg.)(W/m²)	500/200	500/200	500/200	500/200
Application Parameter	Storage Temperature (℃)	‑40~+60	‑40~+60	‑40~+60	‑40~+60
	Operating Temperature (℃)	‑30~+50	‑30~+50	‑30~+50	‑30~+50
	Storage Humidity (RH)	10%~90%	10%~90%	10%~90%	10%~90%
	Operating Humidity (RH)	10%~90%	10%~90%	10%~90%	10%~90%
	IP Rating (Front/Rear)	IP65/IP65	IP65/IP65	IP65/IP65	IP65/IP65
	Module Maintenance	Front	Front	Front	Front
	PSU & Others Maintenance	Front	Front	Front	Front
	Panel Installation Type	Fixed	Fixed	Fixed	Fixed
	Max Rigging QTY.	100	100	100	100
	Certificate	ETL	ETL	ETL	ETL
