| Indoor rental screen | Value | Value | Value | Value |
|---|
Physical parameter | LED Type | smd 3in1 1515 | smd 3in1 1515 | smd 3in1 2020 | smd 3in1 2020 |
| Pixel Pitch(mm) | 1.953125 | 2.604 | 3.91 | 4.81 |

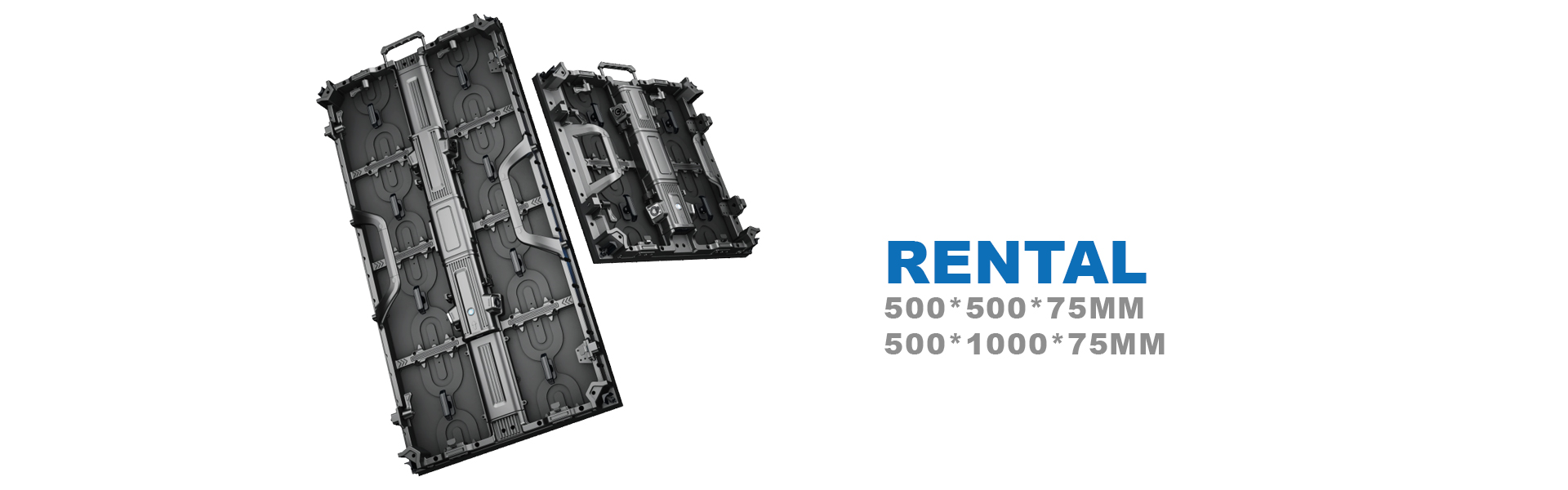

| Panel dimensions(WxHxDmm) | 500x500x75 | 500x500x75 | 500x500x75 | 500x500x75 |
| Pixel per panel | 256x256 | 192x192 | 128x128 | 104x104 |
| Cabinet weight(kg) | 6.8 | 6.8 | 6.8 | 6.8 |
| Cabinet dimensions(WxHmm) | 500x500 | 500x500 | 500x500 | 500x500 |
Optoelectrical Parameter | Brigtness(nits) | 800 | 800 | 800 | 800 |
| Refresh rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Gray scale(Bit) | 16 | 16 | 16 | 16 |
| Contrast ratio | 7500:1 | 7500:1 | 7500:1 | 7500:1 |
| Color temperature(K) | 8000 | 8000 | 8000 | 8000 |
| Viewing Angle (H/V) (°) | 160/160 | 160/160 | 160/140 | 140/140 |
| Driving Type | 1/32 | 1/32 | 1/16 | 1/13 |
| AC Operating Voltage (V) | 100-240 | 100-240 | 100-240 | 100-240 |
| Power Consumption (Max./Avg.)(W/m²) | 600/300 | 600/300 | 600/300 | 600/300 |
Application Parameter | Storage Temperature (℃) | ‑40~+60 | ‑40~+60 | ‑40~+60 | ‑40~+60 |
| Operating Temperature (℃) | ‑30~+50 | ‑30~+50 | ‑30~+50 | ‑30~+50 |
| Storage Humidity (RH) | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Operating Humidity (RH) | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Module Maintenance | Front | Front | Front | Front |
| PSU & Others Maintenance | Front | Front | Front | Front |
| Panel Installation Type | Fixed | Fixed | Fixed | Fixed |
| Max Rigging QTY. | 100 | 100 | 100 | 100 |
