LED DISPLAYS

Outdoor rental screen

Products > RSO(RENTAL STANDARD OUTDOOR) > Outdoor rental screen

Outdoor rental screen

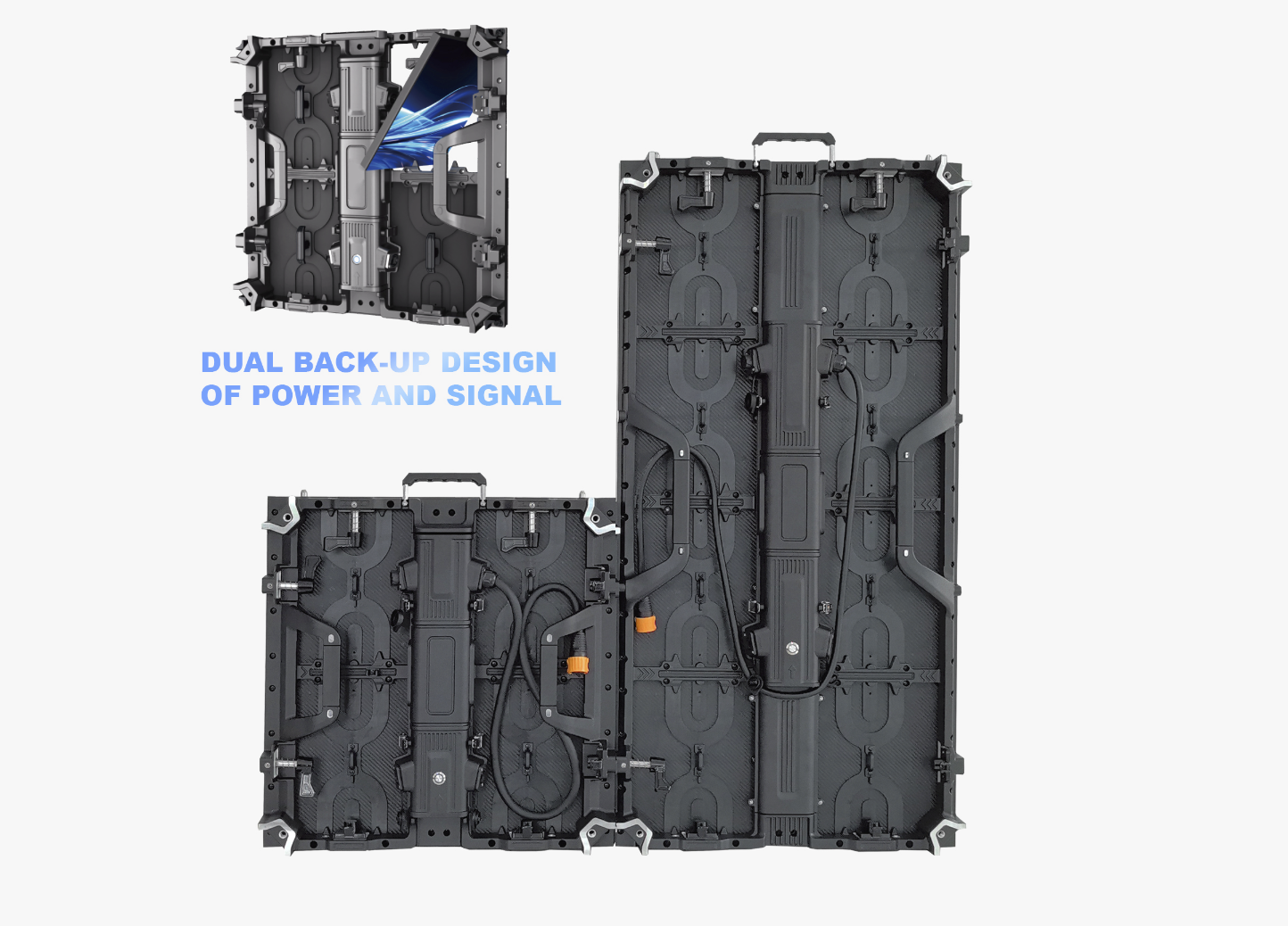

We make a difference.We make signal and power both backup for both small cabinet or big cabinet.For important event,this screen will help cause it has two lifes.

Outdoor rental screen		Value	Value	Value
Physical parameter	LED Type	smd 3in1 1415	smd 3in1 1921	smd 3in1 1921
	Pixel Pitch(mm)	2.604	3.91	4.81

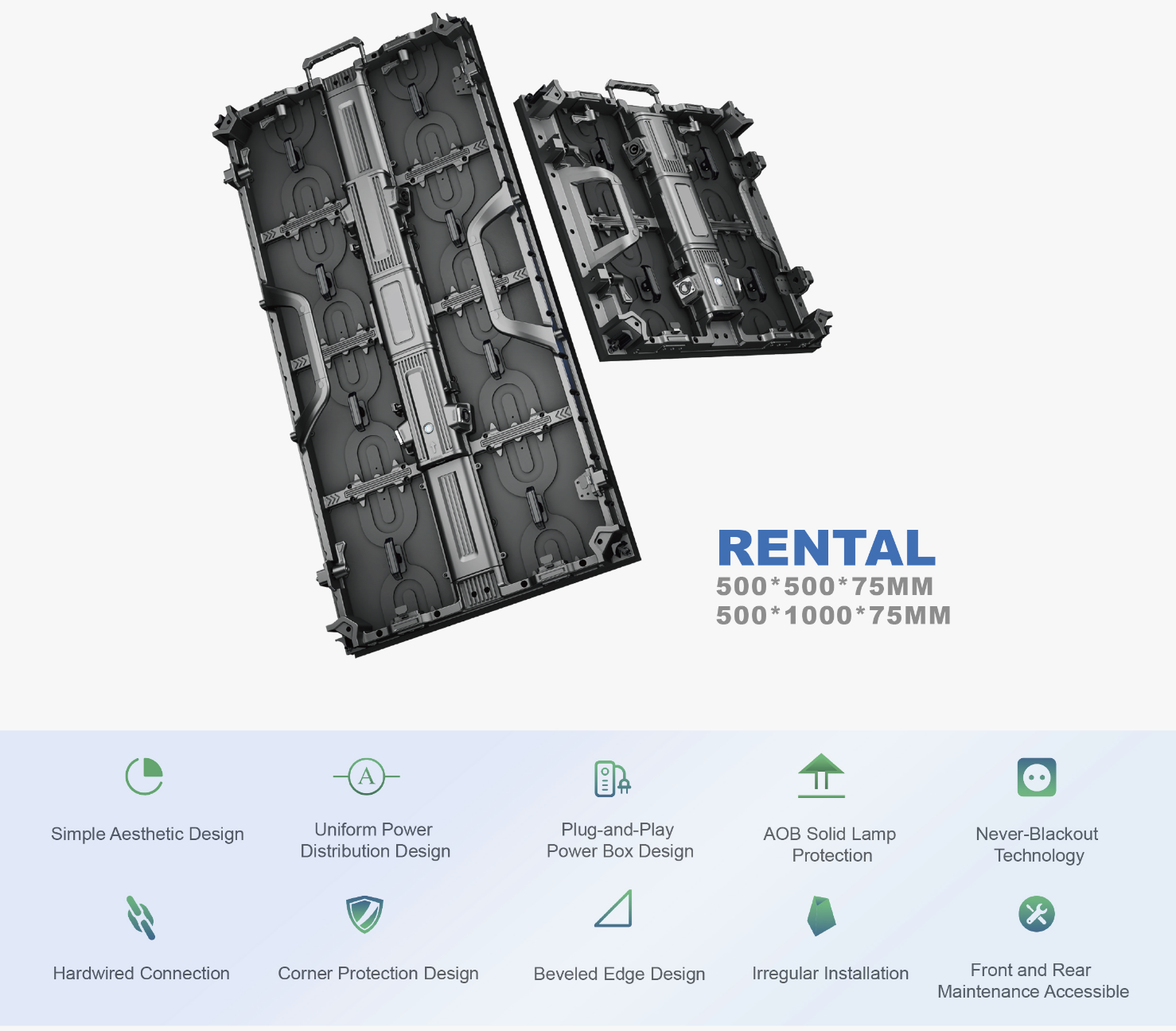

	Panel dimensions(WxHxDmm)	500x500x75	500x500x75	500x500x75
	Pixel per panel	192x192	128x128	104x104
	Cabinet weight(kg)	6.8	6.8	6.8
	Cabinet dimensions(WxHmm)	500x500	500x500	500x500
Optoelectrical Parameter	Brigtness(nits)	5500	5500	5500
	Refresh rate(Hz)	≥3840	≥3840	≥3840
	Gray scale(Bit)	16	16	16
	Contrast ratio	7500:1	7500:1	7500:1
	Color temperature(K)	8000	8000	8000
	Viewing Angle (H/V) (°)	160/160	160/140	140/140
	Driving Type	1/16	1/16	1/13
	AC Operating Voltage (V)	100-240	100-240	100-240
	Power Consumption (Max./Avg.)(W/m²)	800/400	800/400	800/400
Application Parameter	Storage Temperature (℃)	‑40~+60	‑40~+60	‑40~+60
	Operating Temperature (℃)	‑30~+50	‑30~+50	‑30~+50
	Storage Humidity (RH)	10%~90%	10%~90%	10%~90%
	Operating Humidity (RH)	10%~90%	10%~90%	10%~90%
	Module Maintenance	Front	Front	Front
	PSU & Others Maintenance	Front	Front	Front
	Panel Installation Type	Fixed	Fixed	Fixed
	Max Rigging QTY.	100	100	100
